Hirshfeld Computational Analysis and Crystal Structure of 5-[3-(4-Nitrophenyl)-4,5-dihydro-1,2-oxazol-5-yl]-Methyl-5H-dibenzo-[b,f]azepine

Manjunath BC¹, Madan Kumar S², Lingaraju GS^3,4, Sadashiva MP³, Lokanath NK^5* and Byrappa K⁴

¹Department of Physics, Yuvaraja College, University of Mysore, Mysore, India

²DST-PURSE Lab, Mangalore University, Mangalore, India

³Department of Studies in Chemistry, University of Mysore, Mysore, India

⁴Department of Materials Science, Mangalore University, Mangalore, India

⁵Department of Studies in Physics, University of Mysore, Mysore, India

*Corresponding Author:

Lokanath NK
Department of Studies in Physics
University of Mysore
Mysore, India

Abstract

The title compound 5-[3-(4-Nitrophenyl)-4,5-dihydro-1,2-oxazol-5-yl]Methyl-5H-dibenzo-[b,f]azepine, is synthesized and characterized using single crystal X-ray diffraction method. The azepine ring adopts boat confirmation and the fused benzene rings to the azepine ring makes a dihedral angle of 53.39 (7)⁰. In the crystal structure, molecules are stabilized with the C-H^...π, N-O^...π and π^...π short contacts. The intermolecular contacts in the crystal structures are quantified using Hirshfeld surfaces analysis method. The results suggests that the intermolecular H^...H contacts contributes more to the crystal packing when compared to other contacts and the electrostatic potential surfaces are visualized.

Keywords

Dibenzoazepine, Crystal structure, Short contacts, Hirshfeld surfaces

Introduction

A large number of dibenzoazepine derivatives have been synthesized and reported to have number of pharmacological activities [1-3]. Among them, dibenzo[b,f]azepine have attracted considerable attention, which shows a broad range of pharmaceutically active compounds [3-5]. Dibenzoazepine deravative, 5H-dibenzo[b,f]azepine is a common basic fused tricyclic amine. It is used as an intermediate for the synthesis of the registered anticonvulsant drug oxcarbazepine [6,7]. Dibenzo[b,f]azepine and its derivatives have been variously reported as having antiallergic activity, specifically antihistaminic, spasmolytic, serotonin antagonistic, anticonvulsive, antiemetic, antiepileptic, antiinflammatory, sedative and fungicidal action [8]. The crystallographic studies of the molecular and crystal structures of dibenzoazepine derivatives have been reported. [9-12]. In view of the above importance, the synthesis, crystal structure and Hirshfeld surfaces of the title compound 5-[3-(4- Nitrophenyl)-4, 5-dihydro-1,2-oxazol-5-yl]Methyl-5H-dibenzo-[b,f]azepine is reported herewith.

Materials and Methods

Synthesis of the 5-[3-(4-Nitrophenyl)-4,5-dihydro-1,2-oxazol-5-yl]-Methyl-5H-dibenzo-[b,f]azepine

4-Nitro-benzaldehyde oxime (2.0 mmol) was taken in methylene dichloride (10 ml) taken in a round bottom flask. The solution was made basic using triethyl amine (5.0 mmol). N-Chloro succinimide (2.0 mmol), followed by tricyclic amine (1 mmol), were added slowly at 0°C to the stirring solution. After complete addition of the reactants the stirring was continued 6 h. After completion of the reaction (Monitored by Thin Layer Chromatography (TLC)), the reaction mixture was extracted with ethyl acetate (2 × 25 ml). The combined organic layer was washed with 0.1 N hydrochloric acid (2 × 20 ml), followed by brine solution (2 × 20 ml). Then, the organic layer was dried over anhydrous sodium sulphate, filtered and concentrated under reduced pressure to afford the crude product, which was then purified by column chromatography over silica gel (60-120 mesh) using Hexane: Ethyl acetate mixture in 7: 3 ratios as eluent. The slow evaporation method using ethyl acetate and hexane gave yellow colored block shaped crystals. The schematic diagram of the molecule is shown in Scheme 1.

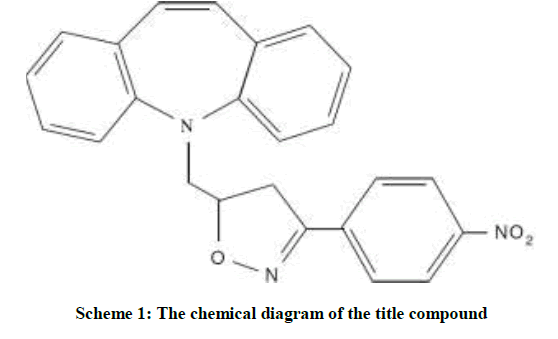

Scheme 1: The chemical diagram of the title compound

Single crystal X-ray diffraction

A yellow block shaped crystal of the title compound, C₂₄H₁₉N₃O₃ with dimensions of 0.23 × 0.21 × 0.22 mm³ was chosen for an X-ray diffraction study using Bruker X8 Proteum diffractometer equipped with CuKα radiation (λ =1.54178 Å) at 296K. Data collections, integration, and scaling of the reflections were performed using the APEX2 program [13]. The structure was solved by direct methods using SHELXS [14]. All the non-hydrogen atoms were revealed in the first Fourier map itself. Full-matrix least squares refinement using SHELXL [14] with isotropic displacement parameters for all the atoms Refinement of the non-hydrogen atoms with anisotropic parameters was started at this stage. The hydrogen atoms were placed at chemically acceptable positions and were allowed to ride on their parent atoms. The details of the crystal data and structure refinement are given in Table 1. The ORTEP [15] of the molecule with thermal ellipsoids drawn at 50% probability is shown in Figures 1 and 2.

Table 1: Crystal data and structure refinement details for the title compound

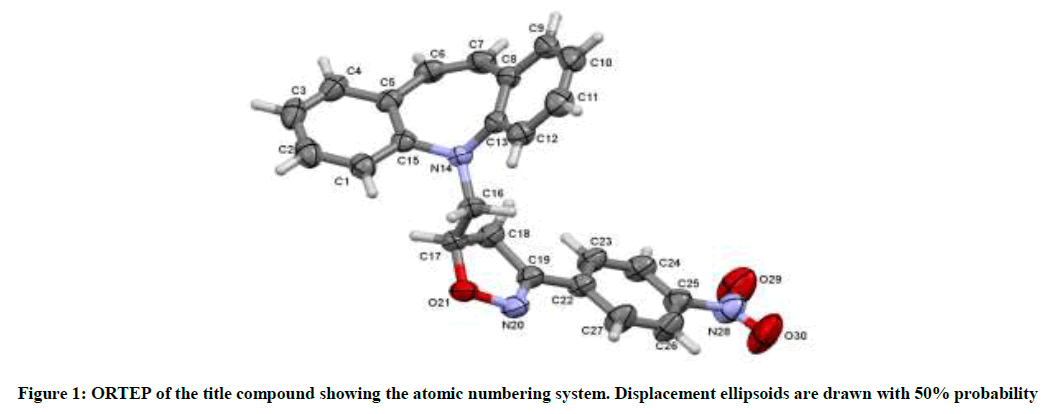

Figure 1: ORTEP of the title compound showing the atomic numbering system. Displacement ellipsoids are drawn with 50% probability

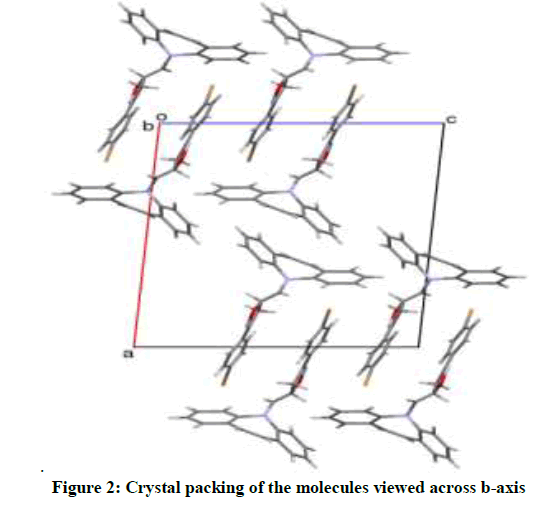

Figure 2: Crystal packing of the molecules viewed across b-axis

Hirshfeld surfaces analysis

The program Crystal Explorer 3.0 [16] was used to perform Hirshfeld surfaces computational analysis and to quantify the intermolecular interactions in terms of surface contribution and generating graphical representations (Figure 3a), plotting 2D fingerprint plots (Figure 3b) [17] and generating electrostatic potential (3c) [18] with TONTO [19]. The electrostatic potential is mapped on Hirshfeld surfaces using Hartree-Fock (STO-3G basis set) theory over the range of −0.020 a.u. to + 0.020 a.u. (Figure 3c).The electrostatic potential surfaces are plotted with red region which is a negative electrostatic potential (hydrogen acceptors) and blue region which is a positive electrostatic potential (Hydrogen donor).

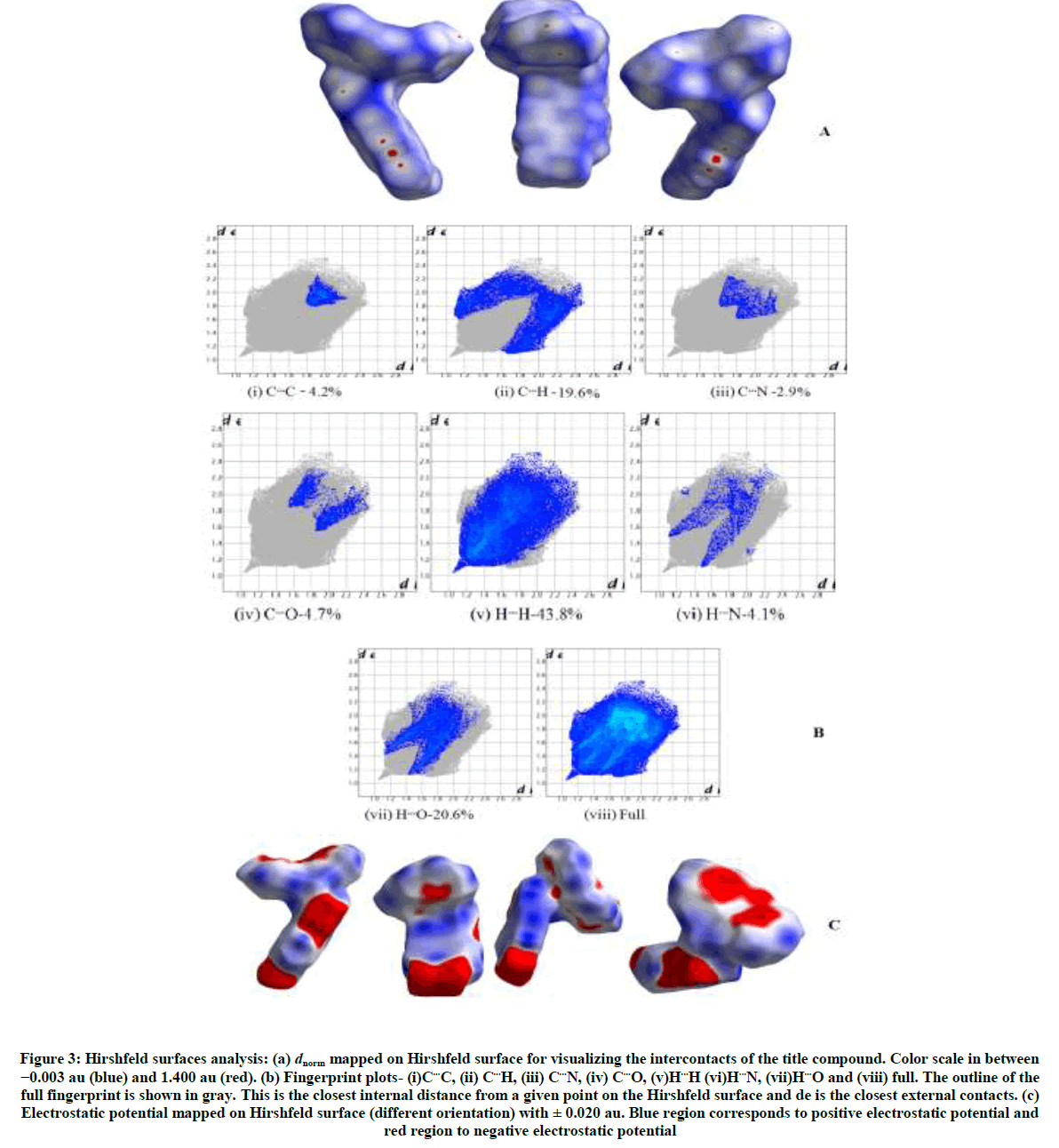

Figure 3: Hirshfeld surfaces analysis: (a) d_norm mapped on Hirshfeld surface for visualizing the intercontacts of the title compound. Color scale in between −0.003 au (blue) and 1.400 au (red). (b) Fingerprint plots- (i)C^...C, (ii) C^...H, (iii) C^...N, (iv) C^...O, (v)H^...H (vi)H^...N, (vii)H^...O and (viii) full. The outline of the full fingerprint is shown in gray. This is the closest internal distance from a given point on the Hirshfeld surface and de is the closest external contacts. (c) Electrostatic potential mapped on Hirshfeld surface (different orientation) with ± 0.020 au. Blue region corresponds to positive electrostatic potential and red region to negative electrostatic potential

Results and Discussions

Molecular and crystal structure

The azepine ring (Figure 1) adopts a boat conformation with the nitrogen atom showing a maximum deviation of 0.494(1) Å, the puckering parameters Q2=0.711(1) Å, φ2=1.95(1)◦, Q3=0.214(1) Å and φ3=359.8(4)◦ and the total puckering amplitude Q_T=0.7431(1) Å [20]. The fused benzene rings Cg(2):C1/C2/C3/C4/C5/C15 and Cg(3) C8/C9/C10/C11/C12/C13 to the azepine motif makes a dihedral angle of 53.39(7)◦. The bond lengths and bond angles of the title compound are in good agreement with the standard values. The bond lengths N14–C13=1.434(2) Å and N14–C15=1.434(2) Å indicates π−electron delocalization, as a result there is a difference in the bond length of C5–C6=1.459(2) Å and C7–C8 = 1.455(2) Å.6,7. The torsion angles for the atoms C1-C15-N14-C16 and C12-C13-N14-C16 shows +syn-periplanar conformation with 24.8(19)◦ and -syn-periplanar conformation with -27.9(1)◦ about the mean plane of fused rings respectively. The packing of the molecules (Figure 2) is stabilized with the π^...π, C-H^...π and N-O^...π short contacts. The π^...π interaction exists between centroids Cg(2) with a distance of 3.927(9) Å [−x, y − 1, −z]. The C3-H3^...Cg(3) and C9-H9^...Cg(2) exists with distance of 3.643(2) Å [angle 142◦, (−x, y − 1,−z)] and 3.573(2) Å [angle 147◦, (x, y − 1/2, z − 1/2)], respectively. In addition a short contact N28--O29^...Cg(3) exists with a distance of 3.737(2) Å [angle 102◦, (x, y − 1/2, z − 1/2)].

Hirshfeld surface analysis

The short contacts (π^...π, C-H^...π and N-O^...π) in the crystal structures are quantified using Hirshfeld surface analysis and the Hirshfield surfaces are visualized (Figure 3a). The 2D-fingerprint plots of intercontacts contributing to the Hirshfeld surfaces are (i) C^...C-4.2%, (ii) C^...H-19.6%, (iii) C^...N-2.9%, (iv) C^...O – 4.7%, (v) H^...H-43.8%, (vi) H^...N -4.1%, (vii) H^...O-20.6% and the full plots is shown in Figure 3b, (viii) The major intercontacts contributing to Hirshfeld surfaces are H^...H, O^...H and C^...H. The electrostatic potential Figure 3c shows the distribution of positive and negative potential over the Hirshfeld surfaces.

Conclusions

The title compound is synthesized, crystallized and the three dimensional molecular structure is determined using single crystal X-ray diffraction method. The azepine ring adopts boat configuration and the crystal structure is stabilized with short contacts π^...π, C-H^...π and N-O^...π. In addition, the intercontacts C^...C, C^...H. C^...N, C^...O, H^...H, H^...N and H^...O are contributing to the Hirshfeld surfaces.

Acknowledgments

Authors thank IOE, Vignayna Bhavan and University of Mysore for providing single crystal X-ray diffraction and DST-PURSE Lab, Mangalore University.

Supplementary materials

Crystallographic data for the structure reported in this paper have been deposited with the Cambridge Crystallographic Data Center as supplementary publications numbers 1526804.
