A Kinetic and Mechanistic Study of the Oxidation of Leucine by Pyridinium Chlorochromate in Aqueous DMF Medium

Introduction

Due to the direct or indirect impact on life and industry, systematic analysis of the kinetics and mechanistic studies of the oxidation of organic compounds has always been a subject of considerable importance. These studies emphasize on the mechanisms involved in the conversion of target molecules in the biological systems particularly in the biological process like age-related oxidations, oxidative stress and in some pathological conditions. The oxidative damage of proteins is considered as the most important modification. Since amino acid residues are the main constituents of proteins, the study of its sensitivity towards oxidation opens a new area to understand the mechanism involved in the protein and amino acid modifications. Amino acids were oxidized by a variety of oxidizing agents [1-3]. It acts not only as a building block in protein synthesis but also plays a significant role in metabolism. Oxidation study of amino acids is of great interest because of their biological significance and selectivity toward the oxidant to yield different products [4-7].

Pyridinium chlorochromate being one of the most versatile available oxidizing agents [8]. A number of reports on the oxidation of several substrates by pyridinium chlorochromate (PCC) are available in the literature like methionine [9], oximes [10], unsaturated acids [11], cysteine [12], alcohols [13] Glycine [14], Alanine [15], Phenyl Alanine [16]. There seems to be no report on the oxidation of Leucine by pyridinium chlorochromate.

Our literature survey reveals that the oxidation of Leucine by different oxidants has received a limited attention so we are particularly interested to see the mechanism of the oxidation of Leucine by pyridinium chlorochromate in acidic DMF-Water media

Experimental

Materials

In this investigation Leucine Analar grade (SRL) were used as supplied and purity was cheked by its melting point. All other chemicals used in this investigation were of analytical reagent grade. Solution of HClO₄ was prepared by diluting known volume of acid in water. The prepared solution was standardized by titration with previously standardized NaOH using phenolphthalein as an indicator. Doubly distilled analytical grade DMF (SRL) was used. And all other Chemicals used were of analytical grade with 99.9% purity.

Synthesis of Pyridinium Chlorochromate

Pyridinium chlorochromate was synthesized by the method of Corey and Suggs [17] and Agrawal [18]. Purity was checked by iodometrically, melting point, elemental analysis and by the IR and UV-VIS spectral analysis [U. V. - λ_max=354 nm; I. R. - ν_max (KBr) = 3066, 2033, 1898, 1599, 1533, 1485, 1033, 949, 750 cm^-1]

Method

The measurements of rate were carried out at 40 ± 0.1 ºC in 0.3 mole dm^-3 HClO₄ under the condition [Leucine] >> [PCC], in the solvent system of 70-30 % (v/v) DMF-H2O. The reaction was initiated by mixing a calculated amount of thermostatted pyridinium chlorochromate in to the reaction mixture. The progress of the reaction was followed by measuring the absorbance of PCC at 354 nm in 1 cm cell placed in the thermostatted compartment of JASCO model 7800 UV/VIS spectrophotometer.

The kinetic runs were followed for more then 60-70% completion of the reaction and good first order kinetics were observed. Pseudo-first order rate constant k_obs were obtained from the slope of the plots of log (absorbance) versus time.

Stoichiometry and product analysis

Reaction mixture containing known slight excess of PCC over Leucine containing 0.3 mol /dm³ [HClO₄] in 70 vol. % DMF, 30 vol. % water mixture (v/v) were allowed to stand at 40ºC. When the reaction was completed, the pyridinium chlorochromate concentration was assayed by measuring the absorbance at 354 nm. The result indicated that two moles of PCC reacts with three moles of Leucine, as shown in Eq.1. The qualitative product study was made under kinetic conditions. The main reaction product was identified as 3-Methylbutanal by its 2,4-D.N.P. derivative. Nesseler's reagent test and lime water test were used to detect the ammonium ion and carbon dioxide, respectively, and Cr(III) was confirmed by the visible spectra of the reaction solution after completion of the reaction. The observed Stoichiometry may be represented as

3RCH (NH₂) COOH + 2Cr (VI) + 3H₂O → 3RCHO + 2Cr (III) + 3NH₄⁺ + 3H⁺ …………….… (1)

Results and Discussion

Effect of PCC

To see the effect on rate of oxidation of oxidant concentration, the initial concentration of the oxidant is varying between the ranges 1.0 ×10^-3M to 2.5 ×10^-3Mat [HClO₄]= 3.0 x10^-1 mol dm^-3, temperature = 313 K and [Leucine]= 2.0 x10^-2 mol dm^-3. The observed rate constant k_obs was not affected by a change in initial concentration of PCC [Table 1].

Effect of Substrate

The rate of reaction increases with increase in Lucine concentration (Table-1). The plot of logk_obs versus log[Leucine] (Figure-1) was linear with positive slope 0.90 (≈1) indicating first-order dependence of the rate on [Leucine]. The plot of 1/k_obs vs. 1/ [Leucine], (Figure-2) gives straight line with positive intercept, which indicates that Michaelis–Menten type kinetics, is followed with respect to Leucine. A similar phenomenon has been observed in the oxidation of α-amino acid by Cr (VI)[19,20].

Figure 1: Variation of Rate with Substrate Concentration

Figure 2: Variation of Rate with Substrate Concentration

Effect of Hydrogen Ion Concentration on Rate of Reaction

The effect of hydrogen ion concentration on rate was studied by using perchloric acid in reaction medium, In general, rate constant increases with increase in hydrogen ion concentration (Table-1). A plot of logk_obs versus log [HClO₄] (Figure-3) is a straight line with a positive slope 1.021 (≈1).

Figure 3: Variation of Rate with Perchloric Acid Concentration

Under the present experimental conditions, the concentration of anion form will be very low and hence the possible species may be either the cation form of amino acids or Zwitter ion. With cation as the active species, the rate law predicts a second-order dependence of the rate on [H⁺], which is contrary to experimental results. Protonated amino acids are not involved in the reaction sequence and the Zwitter ion is the active species in this reaction.

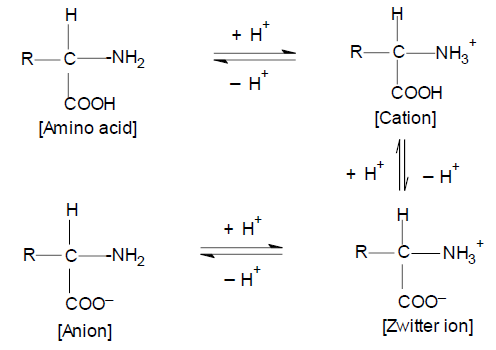

An amino acid is known to exist in the following equilibria

The acid catalysis may well be attributed to a protonation of PCC to yield a stronger oxidant and an electrophile with both the protonated and unprotonated forms being reactive. The formation of a protonated species of PCC has been also reported [2,5,7,14-16, 21].

Effect of ionic strength on Rate of Reaction

The effect of ionic strength was studied in range of Debye-Huckel limiting law by varying the sodium sulfate concentration. It has been observed that there was no significant effect of ionic strength on the rate (Table-2). This indicates that the reaction may be between an ion and a neutral molecule or between neutral molecules.

[PCC] = 2.0 x10^-3 mol dm^-3         Temperature = 313 K
[HClO₄] = 3.0 x10^-1 mol dm^-3         DMF = 70 %( v/v)
[Amino acid] = 2.0 x10^-2mol dm^-3         H₂O = 30%(v/v)

Effect of Dielectric Constant on Rate of Reaction

The rate of reaction is increased with an increase in volume percentage of DMF i.e. the rate of reactions decreased with an increase in dielectric constant of reaction medium (Table-1). Amis [22] had shown that a linear plot of logk_obs vs. 1/D a positive slope indicates a positive ion-dipole reaction, while a negative slope indicates the involvement of two dipoles or a negative ion-dipole reaction. In the present investigation a plot of logk_obs vs. 1/D (Figure 4) gives a straight line with a positive slope clearly indicating that there is an involvement of positive ion-dipole in the rate determining step.

Figure 4: Variation of Rate with Solvent Composition

Effect of Temperature on Rate of Reaction

To find out the effect of temperature on the rate of oxidation, the reactions was carried out at different temperatures. The rate constant of the reaction was found to increase with an increase in temperature [Table-1]. The plot of log k₁ versus 1/T (inverse of absolute temperature) is a straight line [Figure 5]. This shows that Arrhenius equation is valid for this oxidation reaction.

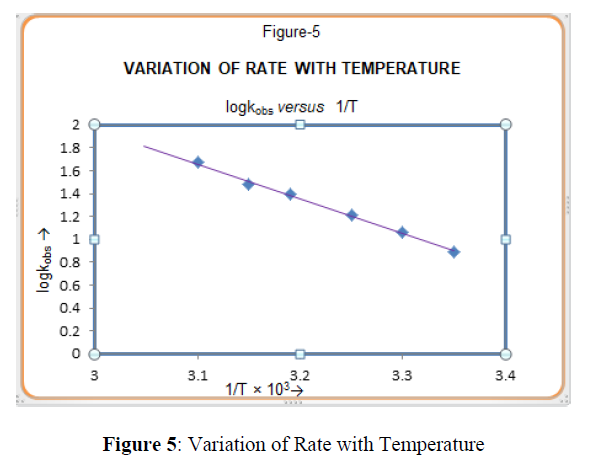

Figure 5: Variation of Rate with Temperature

And activation parameters have been calculated (Table-3).

The entropy of activation is negative as expected for bimolecular reaction. The negative value also suggests the formation of a cyclic intermediate from non-cyclic reactants in the rate determining step [23]. The complex formation is proved by the plot of inverse of rate constant against inverse of substrate concentration. It has been pointed out [24] that if entropy of activation is negative and small the reaction will be slow.

Effect of Acrylonitrile and Pyridine

To test for free radicals, the reaction mixture was treated with stabilizer free acrylonitrile and was kept for 24 hours in an inert atmosphere. On diluting the reaction mixture with methanol, no precipitate was observed, indicating that there is no involvement of free radicals in the reaction under kinetic conditions. The rate of reaction does not change on addition of pyridine indicating thereby, the stability of PCC i.e. PCC is not hydrolyzed in the conditions understudy.

Mechanism

On the basis of above experimental results the following possible mechanism has been proposed for the oxidation of glycine, alanine, phenyl alanine, leucine, isoleucine and tyrosine

The formation of a complex between amino acid and protonated PCC may be represented as

The overall reaction may be represented as

Rate Law

On the basis of above mechanism, the rate law can be expressed as:

=k`[C] . . . . . . . . . . . . . . . 1

Concentration of complex, [C] can be calculated by applying steady state concept. Rate of formation of complex = Rate of disappearance of complex

k₁ [AA] [PCC]_prot. = k_-1 [C] + k` [C] 2

Since

[PCC]_total = [PCC]_prot. + [C]

Therefor

[PCC]_prot. = [PCC]_total – [C] ……….. 3

Hence

k₁ [AA]{[PCC]_total – [C]} = (k_-1 + k`) [C]

k₁ [AA] [PCC]_total – k₁ [AA] [C] = (k_-1 + k`) [C]

k₁ [AA] [PCC]_total= k₁ [AA] [C] + (k_-1 + k`) [C]

k₁ [AA] [PCC]_total = {k_-1 + k` + k₁ [AA] } [C]

Hence

Rate = k` [C]

=k [PCC]_total =k_obs[PCC]_total ( when [AA] = constant )

Where

There for k_m can be calculated by intercept of plot 1/ k_obs versus 1/ [AA].

Conclusions

The reaction is of first order with respect to [PCC], [Leucine], and [ H⁺] ion. The study on the oxidation of Leucine by pyridinium chlorochromate in DMF-water media in the presence of perchloric acid reveals that the neutral amino acid take part in the reaction, protonated amino acid is not involved in the reaction. The Michaelis–Menten type kinetics is observed with respect to Leucine. Although the intercept value [K_m = 0.007] is very small but the value indicates the formation of complex which may be highly reactive so concentration will be very small at any time. The reaction was carried out at different temperatures. In the temperature range of 298-323 K, Arrhenius equation is valid. The thermodynamic parameters indicate that the reaction is entropy controlled.

The overall mechanistic sequence described here is consistent with the product analysis and by kinetic and mechanistic studies.

Acknowledgement

Author are thankful to Prof. B. L. Hiran (Retd.) Department of Chemistry, University College of Science, Monan Lal Sukhadia University, Udaipur for their support and valuable suggestion’s.

References

1. Mahadevappa DS, Rangappa KS, Gouda NM et al., Int J Chem Kinet. 1982, 14: p. 1183.
2. Timmegowda B, Sherigar BS, Oxid. Commun. 1996, 9: p. 165.
3. Jinhu Wang, Haiping Yao, Taotao Lu et al., Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy. 2019, (223): p. 117328.
4. Mahanti MK and Laloo D. J Chem Soc Dalton Trans. 1990, p. 311.
5. Kulkarni RM, Bilehal DC and Nandibewoor ST. Trans Met Chem. 2003, 28: p. 199.
6. Balreddy K, Sethuram B and Navneeth Rao T. Indian J Chem A. 1981, 20: p. 395.
7. Chougale RB, Hiremath GA and Nandibewoor ST. Pol J Chem. 1997, 711: p. 1471.
8. Mahanti MK and Banerji KK. J Indian Chem Soc. 2002, 79: p. 31.
9. Sharma V, Sharma PK and Banerji KK. J Indian Chem Soc. 1997, 74(8): p. 607.
10. Bhandari A, Sharma  PK and Banerji KK. Indian J Chem. 2001, 40(A): p. 470.
11. Kumbhat  R and Sharma V. J Indian Chem Soc. 2004, 81: p. 745.
12. Adari KK, Nowduri A and Vani P. J Trans Metal Chem. 2006, 31(6): p. 745.
13. Hiran BL, Jain S and Bhatt CV. e-journal of Chem. 2009, 6(1): p. 237.
14. Hiran BL, Meena ML, dangarh BK et al., Oxidation Communications, 2012, 35(2): p. 362.
15. Hiran BL, Meena  ML and kunthwal J. Der Pharma Chemica. 2010, 2(5): p. 470.
16. Hiran BL, Meena ML, kunthwal  J et al., Arab J Chem. 2016, 9: p. S1801.
17. Core EJ and Suggs WT. Tetrahedron Lett. 1975, 31: p. 2647.
18. Agrawal SP, Tiwari HP and Sharma JP. Indian J Chem. 1979, 17: p. 300.
19. Hiran BL, Joshi V, Choudhary J et al., Int J Chem Sci. 2004, 2(2): p. 164.
20. Nandibewoor ST, Naik PN and Chimitadar SA. Transition Met Chem. 2008, 33: p. 405.
21. Seth M, Mathur A and Banerji KK. Bull Chem Soc Jpn. 1990, 63: p. 3640.
22. Amis ES. J Chem Educ. 1953, 30: p. 351.
23. Bhattacharjee U and Bhattacharjee AK. Indian J Chem. 1990, 29(A): p. 1187.
24. Glasstone S, Laidler KJ and Eyring H. MegrawHill, New York. 1941.
